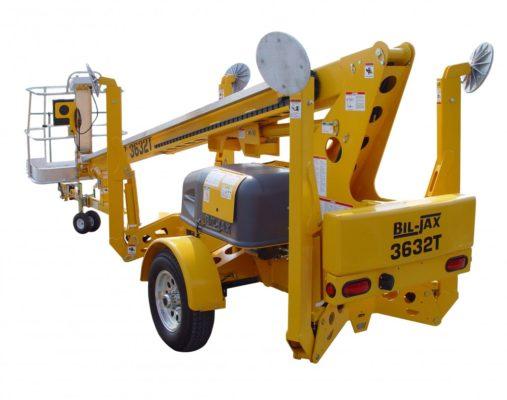

2023 Haulotte 3632T Tow-able Boom Lift
Model
3632T
Serial
New
Year
2023
Price
$31,265.00
Location
Desert Hot Springs, CA 92240

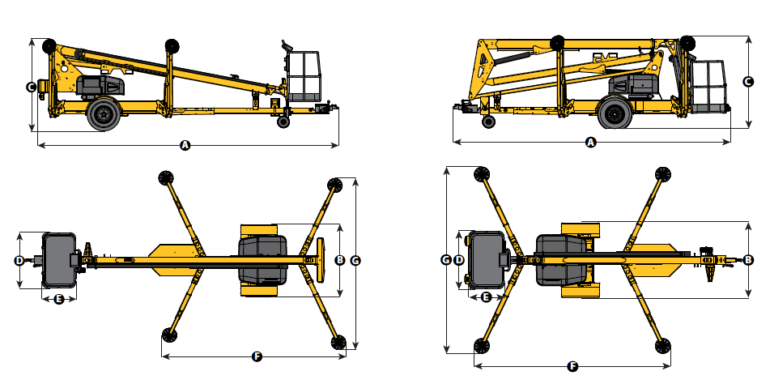

| Working height | 43 ft 6 in |
| Platform height | 37 ft 6 in |
| Horizontal outreach (from centerline) | 32 ft |
| Horizontal outreach (from edge of footpad) | 27 ft |
| Up and over height | N/A |
| Lift capacity | 500 lbs |
| Length – stowed | 22 ft 8 in |
| Width stowed | 5 ft 6 in |
| Height stowed | 6 ft 6 in |
| Platform size | 4 ft 1 in x 2 ft 9 in |
| Turntable rotation | 350° non-continuous |
| Jib – length | N/A |
| Jib – Vertical Motion | N/A |
| Tow speed rating | 65 mph |
| Leveling capability | 12.5 ° |
| Tire size | ST 225/75 R15 |
| Power source | 4 x 6 V 245 amp-hr |
| Tongue weight (no options) | 200 lbs |
| Weight (no options) | 4440 lbs |
| Widest Point | 13 ft 9 in |
| Widest Point | 13 ft 6 in |
Key Features
- Access on the move
- Hydraulic outriggers and automatic leveling allow operation in under 30 seconds
- Superior combination of industry leading capacity and outreach
- Can be towed by a standard half-ton pickup truck – No commercial driver’s license needed
- Exceptional productivity
- Air / water lines and 110V GFI protected power to the platform
Additional Options
- Tube Caddy
- Tool Tray
- Manual Platform Rotator
- Mud Flaps
- 2 5/16″ Trailer Coupler
- Spare Tire & Mounting Kit
- Drive & Set Package
- Primer Paint for High Corrosive Enviroment
- Units will Ship from Factory Virginia Beach, VA
- Availability is 18 – 24mths
